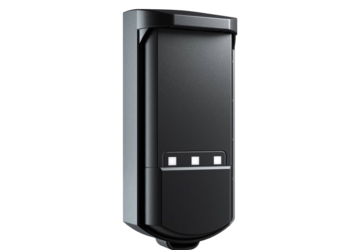

Evoloop
FMCW Sensor
The Evoloop is the alternative to induction loops and photocells, replacing hard work with smart work. Thanks to the 140° field of view, you can configure up to 3 virtual loops independently to fit your application.
The Evoloop can trigger not only opening and closing of the barrier, but also activate ticketing and license plate recognition systems. Moreover, it can protect both vehicles and pedestrians (EN 12453 type D), by reducing the risk of contact with the boom in all environments and conditions.
- Plug & go - No roadworks. Just mount, plug, and go
- Easy setup – Preconfigured loops, adjustable via app
- Fits all barriers - Works with skirts or hinged supports
- All-weather reliable - Rain, snow, or fog—no problem
More technical documents on this product can be found on our partner platform.
Product specifications
Description
Evoloop is an innovative plug & play solution that eliminates the need for heavy and time-consuming roadworks. The system is easy to install on all types of barrier gates, including those with skirts or pendulum supports, and offers maximum flexibility thanks to an adjustable detection range of -20° to +20° – with no additional accessories required.
The automatic environment calibration feature, with pre-configured detection loops, ensures fast and precise installation. Using the intuitive mobile app, you can configure each loop effortlessly and efficiently. Additionally, rugged accessories provide high vandal resistance, even in the most demanding environments.
Features
Technology: FMCW, MoWa inside (microwave 60GHz)
Detection types: presence, protection
Max. detection field: up to 7 m
Mounting height: 30 cm to 70 cm measured from the road (looking horizontally)

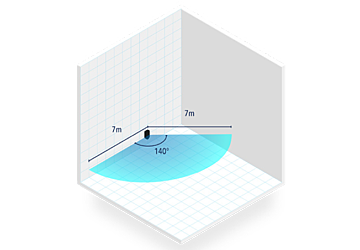

Radar field of view: 140° opening field and 40° in elevation
Antenna angle adjustment: -20° to +20 ° (without accessory)
Bluetooth: operating bandwidth: 2402 MHz – 2480 MHz maximum transmitted power: 12 dBm
Conformity: EN 12453 (type D)
Technical data
Dimensions: 50 mm x 150 mm x 68 mm (form factor)
Outputs: 2 electronic relays (galvanic isolated - polarity free) 1 relay
Supply voltage: 12-30 V DC +/- 10% / 12-24 V AC +/- 10%
Power consumption: < 3 W
Test input: 1 optocoupler (galvanic isolated - polarity free)
Material / Colour: PC / ASA / Aluminium ADC12 – black color
IP rating: IP65 (IEC/EN 60529)
Temperature range: -25°C to +55°C** ; 0-95% relative humidity, non-condensing
