LZR-H100
Laser Scanner
The LZR-H100 laser sensor offers a reliable and flexible solution for vehicle detection—ensuring faster installation, accurate detection of all vehicle types, and enhanced adaptability.
Designed for use with automatic barriers, the LZR-H100 can be configured for opening, safety monitoring, and/or presence detection. The detection field is adjustable in both width and depth, with a maximum coverage of 9.9 m x 9.9 m.
- Presence detection and/or safety monitoring
- Pedestrian filtering
- Easy installation
More technical documents on this product can be found on our partner platform.
Product specifications
Description

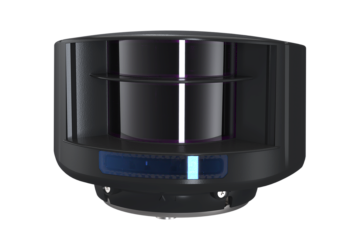

The LZR-H100 is a laser scanner that offers a reliable and efficient alternative to induction loops for automatic barrier systems. Designed for opening, safety monitoring, and presence detection, this sensor uses four laser curtains to create a three-dimensional detection zone, enabling highly accurate object detection.
The detection field can be freely configured to meet specific site requirements, with a maximum coverage of 9.9 m by 9.9 m—allowing both width and depth of the zones to be finely adjusted.
The sensor detects all types of vehicles, including passenger cars, electric vehicles, and trucks with trailers. It can also track the movement direction of approaching or departing vehicles, enabling targeted opening and enhanced safety. A built-in pedestrian filter ensures the barrier only opens for vehicles, ignoring foot traffic and parallel movement.
Installation of the LZR-H100 is simple and does not require invasive groundwork, significantly reducing time and cost compared to traditional induction loops. The sensor is housed in a robust IP65-rated enclosure, ensuring reliable performance in a wide range of environmental conditions.
Features
Technology: laser scanner, light measurement
Dual function: opening, presence detection and/or security
Max. detection field: 9.9 m x 9.9 m
Simple installation: the installation of this sensor does not affect the ground in the immediate vicinity; an unlimited number of detection fields can easily be defined (teach-in by walking)
Trajectory detection: the trajectory of arriving or departing vehicles can be detected
Pedestrian filter: filters out pedestrians in the opening zone
Cable length: 5 m (standard), maximum: 10 m
Technical data
Dimensions (d/b/h): 125 x 93 x 70 mm
Remission factor: > 2 %
Angle resolution: 0,3516 °
Supply voltage: 10-35 V DC at sensor side (only suitable for safety circuits with extra-low voltage = SELV)
Power consumption: < 5 W
Peak current on switch-on: 1.8 A (maximum 80 ms @ 35 V)
Material: PC/ASA
IP-range: IP65
Temperature Range: -30 °C to +60 °C with power supply; -10 °C to +60 °C without power supply
LED signal: 1 blue LED: power supply status; 1 orange LED: fault status; 2 two-colour LEDs: detection/output status (green: no detection; red: detection)

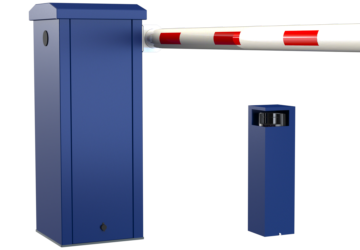

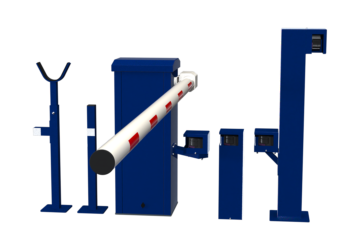

Freestanding Installation
Mounted in an Aluminium Housing
- The laser scanner is mounted horizontally within a freestanding pillar
- A fixed post with reflective foilis required if a wall cannot be used as a reference object
Barrier-Mounted Installation
Mounted on the Console
- The laser scanner is installed horizontally within an aluminium housing, which is securely mounted onto the barrier’s console
- If there is no wall with reflective foil to serve as a reference object, a fixed pole with reflective foil is required for proper operation
Installation
Configurations and Practical Guidelines
The laser scanner is an optical sensor used for detecting people and objects within a monitored area
