SolidBase

Traffic Islands

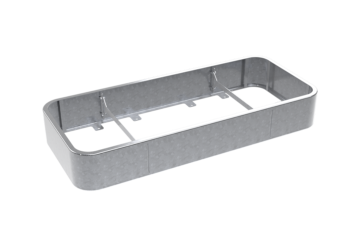

Husck SolidBase traffic islands provide a versatile and durable solution for managing traffic layouts. These islands consist of modular steel components that are easily mounted onto the ground surface.

Thanks to their modular design, the islands can be easily adapted to various applications and configurations.

They offer a strong and stable foundation, ideal for installing barriers, housings and pillars.

Standard hot-dip galvanized, optionally powder-coated
Available in widths of 500 mm and 600 mm
Modular built up, allowing customizable length

More technical documents on this product can be found on our partner platform.

Product specifications

Description

Husck traffic islands offer a versatile and durable solution for organizing traffic situations. These islands are made up of modular steel elements that are easily mounted on the ground surface. Once the elements are in place, concrete can be poured into them, with the steel structures acting as formwork. After the concrete hardens, the structures remain in place, providing a strong and stable foundation, ideal for placing barriers, pillars and housings.

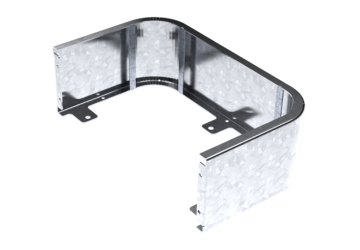

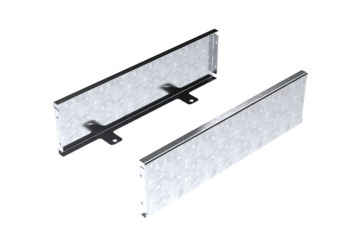

The traffic islands are constructed from base modules, which form the core of the island and can easily be adjusted in length to achieve the desired dimensions. End modules provide a finished closure for the island. The islands are available in two standard widths of 500 mm and 600 mm, allowing them to be perfectly tailored to various traffic conditions.

For optimal corrosion protection, the elements are standardly hot-dip galvanized, ensuring a long service life. Optionally, the islands can be powder-coated in RAL 1003 (signal yellow) for better visibility and a professional finish. Thanks to their modular construction, flexible length adjustment, and robust features, Husck traffic islands provide the perfect solution for installers seeking an efficient and durable way to implement traffic systems.

Features
End module dimensions (w=500 mm) (w/l/h): 500 x 345 x 200 mm
End module dimensions (w=600 mm) (w/l/h): 600 x 345 x 200 mm
Basic module dimensions (l/h): 700 x 200 mm
Weight of end module (500mm): 6.16kg
Weight of end module (600mm): 7.16kg
Weight of basic module: 8.32kg
Material: hot-dipped galvanised steel 3 mm (stainless steel optional)
Finish: hot-dip galvanised or powder-coated to RAL 1003 (signal yellow)
