H-MB

Manual barrier up to 8 m

Industrial grade manual barrier with counterweights for low-traffic entrances.

The MB series barriers offer a practical solution for access control at market squares, campsites, and similar locations.

Optionally available with a cylinder lock to secure the barrier in both open and closed positions.

  • Passage width of up to 8 metres
  • Easy installation
  • Maintenance-free

More technical documents on this product can be found on our partner platform.

Product specifications

Description

The Husck manual barriers from the MB Series are widely used at locations such as market squares, school zones, recreational areas, parallel roads, industrial estates, and wooded environments. Thanks to their easy operation and independence from electricity, these barriers are ideal for low-traffic applications, such as campsites, towpaths, and seawalls.

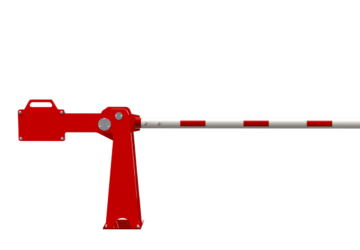

The hand-operated H-MB barrier ombines a robust construction with effortless operation. With a maximum passage width of up to 8 meters, the barrier is equipped with a barrier arm and counterweights, ensuring smooth opening and closing.

The H-MB series includes various models, each with customizable arm lengths, colors, and accessories. The barrier can be locked in both open and closed positions with a padlock or cylinder lock. When closing, the barrier can be supported by a fixed catch post or a hinged pendulum support.

Technical data
Standard RAL colours:
Colour of your choice: optional
Aluminium barrier arm: Ø 84 mm or Ø 90 mm
Support structure dimensions: 300 x 300 x 1020 mm
Left/right use: yes
Locking: stainless steel pin with padlock or cylinder lock (optional)
Support Structure

Solid Steel Frame

  • Blasted, metallised and dual-layer powder-coated
  • Stainless steel parts pickled and passivated

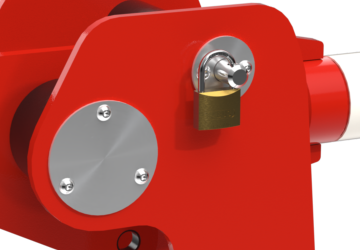

Locking

Lockable in Horizontal and Vertical Position

  • Standard locking via padlock and stainless steel pin
  • Locking via cylinder lock optional

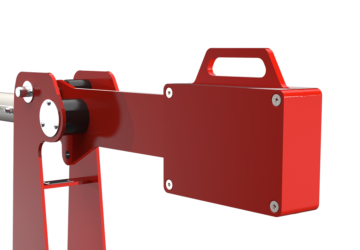

Counterweights

For Easy Operation

  • Counterweights ensure optimum weight balance
  • No maintenance

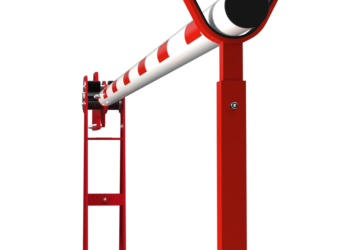

Barrier Boom

Maximum Boom Length of 8350 mm

  • Round aluminium profile Ø84 mm / Ø90 mm
  • With red reflective strips and plastic end cap

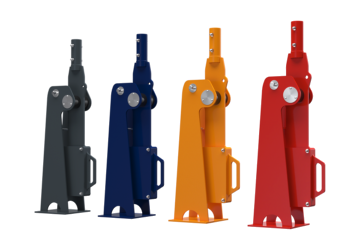

Colours

Four Standard Colours

  • RAL 3020, RAL 2000, RAL 5013 or RAL 7016
  • Variable colours are optional
